Set Auto Number field value conditionally in Dynamics 365 / Dataverse


Recently we had a requirement to use auto numbers for lead records.

However, based on where the lead records are being created from, we wanted to specify a different prefix to it.

For leads created manually, the format should be prefixed “L” followed by “– “and then 10 digit sequence number.

L-{SEQNUM:10}

And if created through API the prefix should be B.

B-{SEQNUM:10}

To achieve this, we can define an auto-number field with the following format.


Next, we can have a bool field (default – false) in the lead table, to identify if it is being created from the API, which we can set while creating the lead record through API.

And a Pre Create Plugin on Lead to check the value of that field.

If it is set (true), that we can replace the Prefix from L to B in the auto-number field within the context.

In the Pre Create plugin, we get the next sequence in the auto-number field, so simply replacing/setting the value of the auto numbering field did the trick.

Lead created through Web Application –

Lead created through API –

Here uniqueness was more important than the next sequence of the lead record so this solution worked.

Also check –

https://jonasr.app/2020/03/anm-unique-seq/

https://nishantrana.me/2021/11/09/few-key-points-auto-number-field-in-dataverse-dynamics-365-ce-crm/

Hope it helps..

Advertisements

Lookup Behavior – Minimum character to trigger search and delay between trigger – Dynamics 365

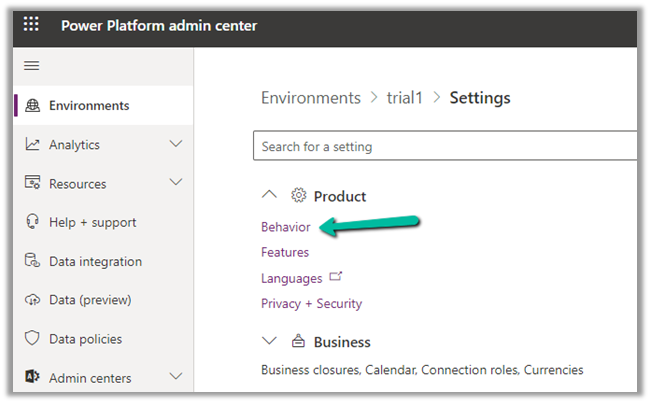

Within Power Platform Admin Center – (https://admin.powerplatform.microsoft.com/)  through Environments >> [Name] >> Settings >> Behavior >> Lookup Behavior settings we can control the minimum number of characters entered before triggering the search in the and delay before the search is triggered for the lookups.

  • Minimum number of characters to trigger typeahead search – Default (2)
  • Delay between character inputs that will trigger a search – Default (250ms)

Here we have updated the value to 5 and 5000 respectively for our testing.

The result –

Lookup Behaviour

After 5 characters are entered, it waits for 5 seconds before searching (loading..)

Also check –

https://nishantrana.me/2021/06/22/advanced-lookup-in-model-driven-power-apps-dynamics-365/

https://docs.microsoft.com/en-us/power-platform/admin/settings-behavior

Hope it helps ..

Advertisements

Few key points – Auto Number field in Dataverse (Dynamics 365 CE / CRM)


  • Can we convert the existing text field to the Auto Number field?

Yes, e.g. we can update the Last Name attribute of the lead’s data type to be of Auto number from Text.

  • Can we convert the auto number field back to the normal text field?

Yes



  • Can the auto number field have duplicate values?

Yes, the platform allows having more than one record to have the same value. It doesn’t throw an error.

Multiple lead records have null values for the auto number field as shown below.

  • What if the Seed value increases than the digits specified?

The platform will assign the next value and will not throw an exception.

  • Can we change the format of the existing auto number field?

Yes

It will affect any new records created.

  • What other things we can do with the auto number fields?

We can make the field read–only in the form so that users do enter the values manually, we make the field required and for uniqueness, we can enable alternate keys on it.



  • What is the min and max length of the RANDSTRING placeholders?

Between 1-6

  • What about maximum seed value?

The auto number field is similar to a text field, it is different in that it generates a unique number when there is no value specified for it.

Get all details here –

https://docs.microsoft.com/en-us/powerapps/developer/data-platform/create-auto-number-attributes

https://jonasr.app/2017/10/anm/

Hope it helps..

Advertisements

Route Case (routecase) attribute and msdyn_ApplyRoutingRuleEntityRecord Action in Dynamics 365 Customer Service


The case entity/table in Dynamics 365 CE has a Boolean type field named Route Case.

It has a default value as Yes.

On manually creating the record from the user interface, although Route Case shows the default value as Yes

On saving the record, the value changes to No, the field is also locked.

So basically no routing rules are applied when a case record is created from the user interface.

To apply routing rules, we need to use the “Save and Route” option

Or “Apply Routing Rule” command from the Grid

This also however will not update or set the Route Case field to Yes on the case record.

Now if we create the case record programmatically, the field would be set and saved with its default values as Yes.

The same goes for cases created from Flow.

Route Case is set to Yes.

So basically routing rules will be triggered on the records created from outside the User Interface as Route Case will be set Yes for those records.

Now if we want to run the routing rules against the case record created from the user interface, we can make use of the following action –

msdyn_ApplyRoutingRuleEntityRecord

Within Flow –

Within Plugin or any custom code–

msdyn_ApplyRoutingRuleEntityRecord can be used for other entities apart from the case.

In the case of Case entity, we can also make use ApplyRoutingRule action also.


Hope it helps..



Advertisements

Using DataSourceInfo and RecordInfo function for checking permissions for a Dataverse table or record in Canvas App


DataSourceInfo function can be used to check the Table / Entity level permission.

We can check for Create, Read, Edit, and Delete Permission and can disable, hide and show the corresponding create, edit and delete buttons for the users.

  • DataSourceInfo.CreatePermission
  • DataSourceInfo. DeletePermission
  • DataSourceInfo. EditPermission
  • DataSourceInfo. ReadPermission

DataSourceInfo function can also be used to obtain information about a particular column of the data source like Display Name, Max Length, Max Value, Min Length, Required.

https://www.inogic.com/blog/2020/11/how-to-use-datasourceinfo-in-canvas-app/

  • DataSourceInfo.DisplayName
  • DataSourceInfo.MaxLength
  • DataSourceInfo.MaxValue
  • DataSourceInfo.MinValue
  • DataSourceInfo.Required



Similarly, the RecordInfo function can be used to get the information about the record of a Dataverse data source.

We can check for the Read, Edit, and Delete Permission.

  • RecordInfo. ReadPermission
  • RecordInfo. EditPermission
  • RecordInfo.DeletePermission

Hide Show control based on Security Role in Canvas App

Here for our sample Canvas App we have a button and a Gallery  having Data source as Cases

1

Visible

Button

If(DataSourceInfo(Cases,DataSourceInfo.ReadPermission), true, false)

2

Visible

Edit

If(RecordInfo(Gallery1.Selected, RecordInfo.EditPermission),true, false)

3

Visible

Delete

If(RecordInfo(Gallery1.Selected, RecordInfo.DeletePermission),true, false)

Now to test it, we have assigned the below custom security role/rights to another user – Test User 1 (along with Basic User security role)

i.e. Read, Write and Delete permission at the User Level on Case.

We have also shared the Average order shipment time record with Test User 1 assigning him the Write Permission.

Now when Test User 1 will open the Canvas App, the first button will be visible as he has the Read permission on the Case table.

In the gallery only the one record shared will be visible along with the Edit button on the same.

Let us just share one more case record with only Read permission to Test User 1.

We can see the record displayed for Test User 1.

It shows the Edit button for the new record, although we shared the record with the Read permission.

We have the following formula for the Edit button’s OnSelect

Patch(Cases, LookUp(Cases,’Case Number’ = lblCaseNumber.Text), {‘Case Title’:”Sample Title”})

So clicking on Edit for the new record shared ‘Complete overhaul required‘ gives the below Permission error

Now pressing the same edit button for the ‘Average order shipment time’ record will update the record (set title as Sample Title) as it was shared with Write permission with Test User 1.

Get all the details here –

https://docs.microsoft.com/en-us/powerapps/maker/canvas-apps/functions/function-datasourceinfo

https://docs.microsoft.com/en-us/powerapps/maker/canvas-apps/functions/function-recordinfo

Hope it helps..

Advertisements

Updated Solution Explorer (Preview) experience in Dynamics 365


Microsoft recently announced the public preview of the new solution explorer which will eventually be the default experience going forward.

Earlier we could access it by visiting the – https://make.preview.powerapps.com/

In the new experience, we can Enable / Disable the new Solution Explorer by toggling the Solution preview on

The is how the existing solution experience looks like – here we have opened the Default solution.

With the new experience, the solution selected opens up and takes the whole page, with the new left navigation added.

Also, it adds a new Tree style of navigation for Objects.

+New button experience has been updated.

Left is the old experience listing each component and new experience in the right with the options grouped.

The overview section gives the details of the solution like display name, name, package type, etc. with the option to edit the details.

  • The option to run the Solution Checker.
  • Manage Search Index.
  • Recent activities performed.

The history page gives the details of the operations performed on the solution.

If we still need we can switch to classic

Performance improvements through parallel loading (Tree View) and caching (Solution objects, authentication while switching to classic, etc.

Get all the details here

https://powerapps.microsoft.com/en-us/blog/managing-solutions-has-a-new-look-public-preview/

Hope it helps..
