Tag: PowerApps

Versioning and Drafts for Solution-based Cloud Flows – Power Automate


We now have the version support for Cloud Flows in Power Automate.

This feature is only available in the new editor.

Let us start by creating a simple flow, the creation part will happen in the existing editor.

A screenshot of a computer Description automatically generated

Let us save the flow, and select Edit >> Details in a new tab to open it in the new designer inside Power Automate Maker Portal

A screenshot of a computer Description automatically generated
We can see the below different commands in the new designer

  • Version History
  • Save Draft
  • Publish

Below we have made changes to the flow and clicked on Save Draft.

Clicking on Save Draft changes the flow to Draft and shows the message “We saved your draft flow. You can test and run it after you publish”

From the Version History, we can see the Latest Version, Published Version, and the Past Published version, with the option to Restore it.

A screenshot of a computer Description automatically generated

We can save a draft of a flow even with errors now.

A screenshot of a computer Description automatically generated

Check for more details – Draft and Versioning for Cloud Flows

Hope it helps..

Advertisements

Fixed – The input is not a valid Base-64 string as it contains a non-base 64 character, more than two padding characters, or an illegal character among the padding characters exception in Plugin (Dataverse / Dynamics 365)


Recently for one of our plugins, that moves attachments to the Azure Blob Storage, we got the below exception.

BlobFileName: WFU000069107_Inside Install – CFC__2024_03_03_12_24_05_179_temp.jpg
Caught Exception: The input is not a valid Base-64 string as it contains a non-base 64 character, more than two padding characters, or an illegal character among the padding characters.
System.FormatException: The input is not a valid Base-64 string as it contains a non-base 64 character, more than two padding characters, or an illegal character among the padding characters.
at System.Convert.FromBase64_Decode(Char* startInputPtr, Int32 inputLength, Byte* startDestPtr, Int32 destLength)
at System.Convert.FromBase64CharPtr(Char* inputPtr, Int32 inputLength)


We were getting errors while trying to use the FromBase64ToString method to decode the Base64 encoded string into its original byte array.

Seemed there were some issues with the image uploaded, even from the browser when trying to download we were getting the below exception.

The solution was to check if it is a valid Base64 encoded string before converting it to a byte array and if not skip it and process other attachments in the plugin.

const string base64Pattern = @"^[A-Za-z0-9+/=]*$";

Hope it helps..

Advertisements

ILMerge / Dependent Assemblies in Plugin – System.IO.FileNotFoundException: Could not load file or assembly ‘System.Memory.Data’ – Dynamics 365 / Dataverse


Recently in one of our Plugins, which was using Azure.Storage.Blobs and Azure.Storage.Common libraries to move attachments from notes to Azure Blob Storage suddenly started throwing the below exception. The Plugin had been working fine and had been deployed long back to the production environment.

System.TypeInitializationException: The type initializer for ‘Azure.Response’ threw an exception. —> System.IO.FileNotFoundException: Could not load file or assembly ‘System.Memory.Data, Version=1.0.2.0, Culture=neutral, PublicKeyToken=cc7b13ffcd2ddd51’ or one of its dependencies. The system cannot find the file specified.

We raised the Microsoft Support for it and were informed that the reason for this was there was a platform update over that particular weekend to stop loading the “System.Memory.Data” assembly on the plugin server. And as we hadn’t included that assembly in our package (ILMerge), we started getting the exception.

Also as per Microsoft Docs


So the quick fix at that time was to include (set Copy Local as True) for that System.Memory.Data along with Azure assemblies.

Also now we can look into using Plugin Package to package the dependent assemblies.

Hope it helps..

Advertisements

The plug-in execution failed because the Sandbox Worker process crashed. This is typically due to an error in the plug-in code – Dataverse / Dynamics 365


Recently we got the below exception for one of our plugins.

Message: The plug-in execution failed because the Sandbox Worker process crashed. This is typically due to an error in the plug-in code. Please refer to this document: https://go.microsoft.com/fwlink/?linkid=2189390
Microsoft.Xrm.RemotePlugin.Grpc.ExceptionHandlers.SandboxFabricWorkerCommunicationException: Error communicating with SandboxFabric Worker —> Grpc.Core.RpcException: Status(StatusCode=”DeadlineExceeded”, Detail=”Deadline Exceeded”

If we refer to Microsoft Documentation below seems to be the cause of the issue in our case.

In our scenario, we had a Plugin that was Asynchronous and it was triggered on the Post Update of Work Order Service task. The plugin will fetch all the attachments (to notes associated with inspection attachments > inspection response > work order service task). There were many Service Tasks having more than 20 attachments exceeding 100 mb size total.

We were doing bulk updates which triggered the plugin creating too many requests eventually leading to that error.

Get more details – Error “Sandbox Worker Process Crashed”

Also, check – https://cloudblogs.microsoft.com/dynamics365/it/2017/02/20/microsoft-dynamics-365-online-asynchronous-service-quotas/

Fixed – System.InvalidOperationException: Message size exceeded when attempting to send response to sandbox. Message Size 123 Mb. Max Allowed 128974848 Mb (Dataverse / Dynamics 365 )

Hope it helps..

Advertisements

Block unmanaged customizations (preview) – Dataverse / Dynamics 365


We were recently trying out the new block unmanaged customizations feature introduced.

Now with more and more adoption of Managed Solutions, having this feature could help the administrators to manage and control the environment.

It is still in preview, with its sets of known limitations.

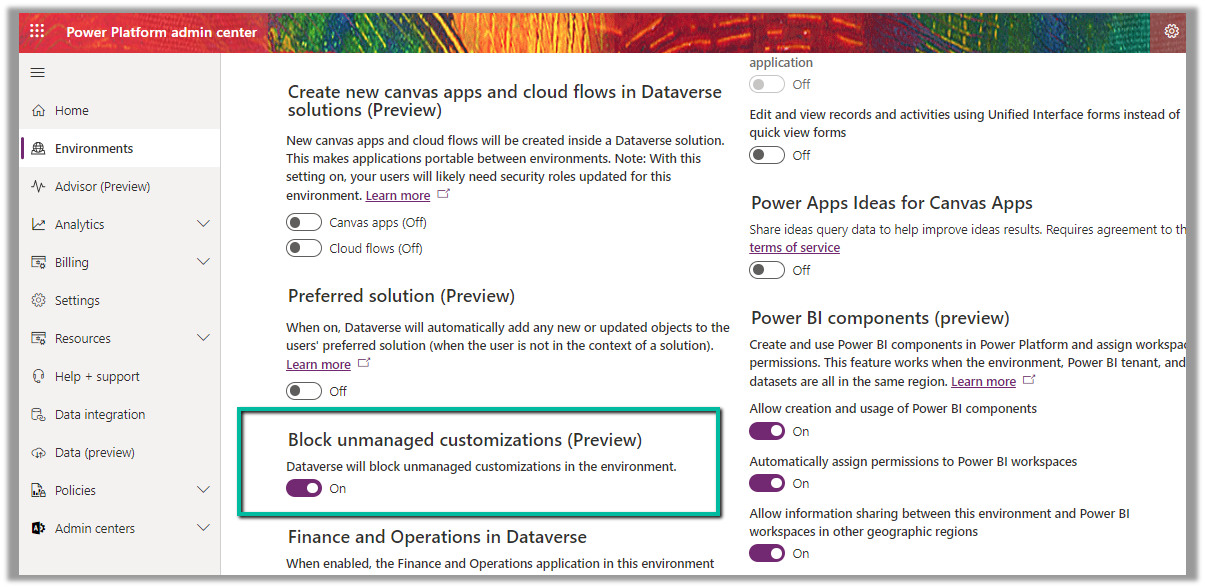

To see it in action, enable it from Environment >> [Environment] >> Settings >> Features

With this feature enabled, although we can create and export unmanaged solutions in the environment, we cannot

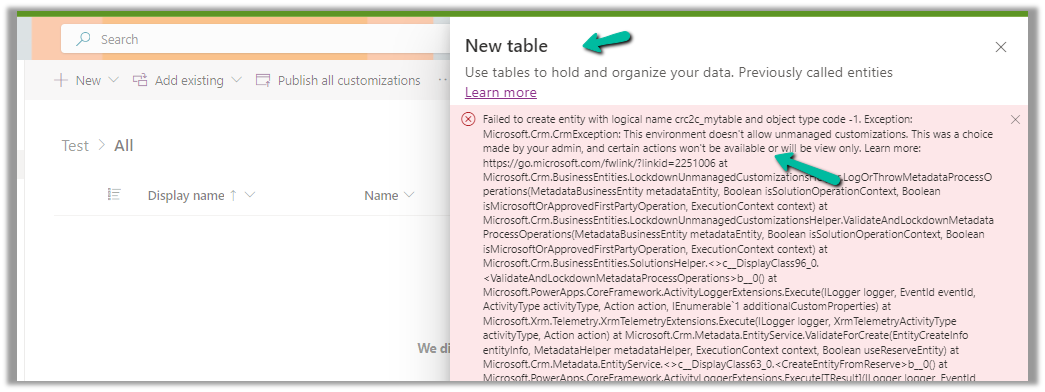

create a new table

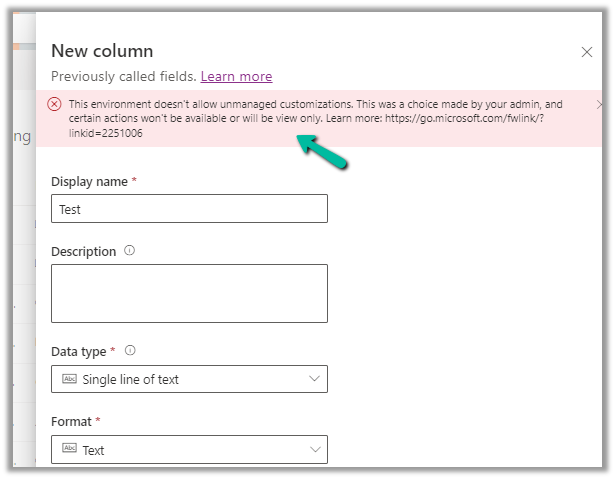

Or create a new column or any other unmanaged solution component

Import an unmanaged solution –

Update a form (i.e. adding unmanaged changes to existing managed components)

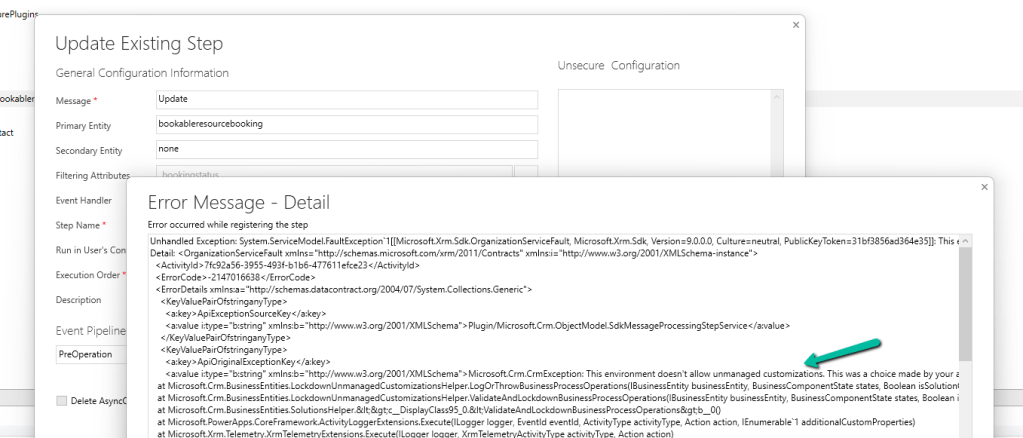

On trying to update a Plugin Step –

Get full details here

Hope it helps..

Advertisements

Fixed – Invalid type. Expected Integer but got Number (Power Automate)


In one of our Cloud Flows, for Parse JSON action, we got the below error –

ValidationFailed. The schema validation Failed.

“Invalid type. Expected Integer but got Number”

The generated schema had data type defined as integer instead of number type for certain properties, and the response was having decimal value to it.

So replacing the “integer” with “number” in the Schema of Parse JSON action fixed the issue.

Hope it helps..
