Manage Dynamics 365 Web API with Azure API Management


Azure API Management is an Azure service to create consistent API gateways for secure, scalable access for back-end applications and services.

Azure API Management consists of 3 main components

  • API Gateway

  • Azure Portal for administration

  • Developer Portal for API documentation

Each API inside Azure API Management contains a reference to the back-end service that implements the API and its operations.

Let us start by creating the Azure API Management resource –

Login to Azure Portal

https://portal.azure.com/

Search for API Management

Provide the appropriate details. (Here we have selected the – Developer tier)

After validation is passed, review and click on Create.

It will take around 30 minutes for the deployment to be finished

After the deployment is successful, we can navigate to it and can find the Gateway URL and Developer portal URL as shown below.

Here we will start with a Blank API.

Specify the display name, name and for Web service URL the URL of Dynamics 365 Web API

Click on +Add operation to add a new operation to the API.

Specify the URL as shown below to fetch all the contacts from Dynamics 365.

The URL of the operation

Right now we will get the 401 error as expected as we have not passed the token expected by the Web API.

Now for the token part for calling the Dynamics 365 API, register the Application in Azure AD, create a new Application User, and assign appropriate security roles to it.

https://docs.microsoft.com/en-us/powerapps/developer/data-platform/authenticate-oauth#connect-as-an-app

Here we would be defining send-request policy, to generate the Token and pass it in the Authorization header to the Dynamis 365 Web API request.

Select the GET operation, navigate to the Design tab and open the policy code editor for inbound processing

Add the send-request and set-header policy to generate and set the bearerToken

Specify the endpoint URL of OAuth token, client id, client secret of the application registered.

"copy code from the end of the post"

Save the change and let us test the API.

We can see the results as expected.

The other things that can be done are to associate the API with Products, specify Subscription, Security, enable Application Insights, Azure Monitor etc.

Specify policies –

https://docs.microsoft.com/en-us/azure/api-management/api-management-policies

References

https://transform365.blog/2020/03/29/azure-api-management-and-dynamics-365-web-api/

https://app.pluralsight.com/library/courses/microsoft-azure-developer-implement-api-management/table-of-contents

Hope it helps..

<policies>
  <inbound>
    <base />
    <send-request mode="new" response-variable-name="bearerToken" timeout="20" ignore-error="true">
      <set-url>https://login.microsoftonline.com/89a735bf-2d85-4a5b-a74a-59656af50f2e/oauth2/token</set-url>
      <set-method>POST</set-method>
      <set-header name="Content-Type" exists-action="override">
        <value>application/x-www-form-urlencoded</value>
      </set-header>
      <set-body>@{ return "client_id=510b66c9-4841-4d3d-8e95-150779adcb3e&resource=https://gcrm.crm.dynamics.com&client_secret=t~6DU7Ma4GZjh.M0Xf7eCizy.E~ME4zy_3&grant_type=client_credentials"; }</set-body>
    </send-request>
    <set-header name="Authorization" exists-action="override">
      <value>
        @("Bearer " + (String)((IResponse)context.Variables["bearerToken"]).Body.As<JObject>()["access_token"])</value>
    </set-header>
  </inbound>
  <backend>
    <base />
  </backend>
  <outbound>
    <base />
  </outbound>
  <on-error>
    <base />
  </on-error>
</policies>
Advertisements

Fixed – 401 Unauthorized error while calling Dynamics 365 Web API


We were recently getting the below error while trying to call Dynamics 365 Web API through Postman.

“401 Unauthorized”

It turned out that we were using the incorrect Token.

To generate the correct token,

For OAuth 2.0 token endpoint (v1) Version 1

  • We need to specify resource with Dynamics 365 URL.


For OAuth 2.0 token endpoint (v2) Version 2

  • We need to specify scope with
    Dynamics 365 URL followed by .default instead of a resource.

The correct token results in the successful call to the Web API

References –

https://matthijs.hoekstraonline.net/2020/04/27/v1-and-v2-identity-and-access-tokens-with-azure-active-directory/

https://crmchap.co.uk/generating-oauth2-v2-0-endpoint-tokens-for-dynamics-365-the-common-data-service/

Hope it helps..

5000 records limit of Fetch XML Query – List records action of Common Data Service (current environment) connector in Power Automate


Recently in one of our requirements, while trying to fetch contact records using Fetch XML Query

https://docs.microsoft.com/en-us/connectors/commondataserviceforapps/#list-records

we realized that we can only retrieve / fetch 5000 records.

Enabling pagination will also not help here (the Next link also come as null).

The alternate solution is to convert the Fetch XML query to OData and use the same inside List records action

https://fetchxmlbuilder.com/features/#render-flow

Get more details here

https://evolved365.com/2020/10/06/working-with-large-cds-datasets-in-power-automate-flows-and-logic-apps/

Hope it helps..

Use CrmServiceClient to execute web request against Web API – Dynamics 365


In the previous post we saw how to use CrmServiceClient to connect to CDS using Authentication Type – OAuth and execute web request using Organization.svc service

https://nishantrana.me/2020/11/09/sample-code-to-connect-to-cds-dynamics-365-ce-using-oauth/

Here we will extend the same example to execute web request using Web API.

  • Create the contact record with first name and last name populated

using Microsoft.Xrm.Tooling.Connector;
using Newtonsoft.Json.Linq;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.Http;

namespace SampleConsoleApp
{
class Program
{
static void Main(string[] args)
{
string ConnectionString = "AuthType = OAuth; " +
"Username = [username]@[domain].onmicrosoft.com;" +
"Password = [password]; " +
"Url = https://[orgname].crm.dynamics.com;" +
"AppId=51f81489-12ee-4a9e-aaae-a2591f45987d;" +
"RedirectUri=app://58145B91-0C36-4500-8554-080854F2AC97;" +
"LoginPrompt=Auto";

CrmServiceClient svc = new CrmServiceClient(ConnectionString);

// specify OData Headers
Dictionary&amp;lt;string, List&amp;lt;string&amp;gt;&amp;gt; odataHeaders = new Dictionary&amp;lt;string, List&amp;lt;string&amp;gt;&amp;gt;
{
{ "Accept", new List&amp;lt;string&amp;gt;() { "application/json" } },
{ "OData-MaxVersion", new List&amp;lt;string&amp;gt;() { "4.0" } },
{ "OData-Version", new List&amp;lt;string&amp;gt;() { "4.0" } }
};

if (svc.IsReady)
{
// create a contact record with firstname and lastname populated
dynamic contact = new JObject();
contact.firstname = "Meeska";
contact.lastname = "Mooska";
string jsonContact = Newtonsoft.Json.JsonConvert.SerializeObject(contact);

// create the contact record
// Parameters - HttpMethod, QueryString, Body, Customer Headers, Content Type
HttpResponseMessage httpResponse = svc.ExecuteCrmWebRequest(
HttpMethod.Post,
"contacts",
jsonContact,
odataHeaders,
"application/json");

if (httpResponse.IsSuccessStatusCode)
{
var contactUri = httpResponse.Headers.GetValues("OData-EntityId").FirstOrDefault();
Console.WriteLine("Contact URI: {0}", contactUri);
}
else
{
Console.WriteLine(httpResponse.ReasonPhrase);
}
}
}
}
}

  • Retrieve first name and last name for all the contact

// retrieve first name and last name of all the contact records
HttpResponseMessage httpResponse = svc.ExecuteCrmWebRequest(
HttpMethod.Get,
"contacts?$select=firstname,lastname",
string.Empty,
odataHeaders,
"application/json");



Get the details here – ExecuteCrmWebRequest

Hope it helps..

Process Optimization – Dynamics 365 CE / CRM / CDS SSIS Integration toolkit – KingswaySoft


Process Optimizations is a new feature added in the CDS / CRM Destination Component of KingswaySoft’s SSIS Integration Toolkit as part of November 2020 Release.

Check other posts on SSIS and Dynamics 365

https://nishantrana.me/2020/10/16/ssis-kingswaysoft-and-dynamics-365/

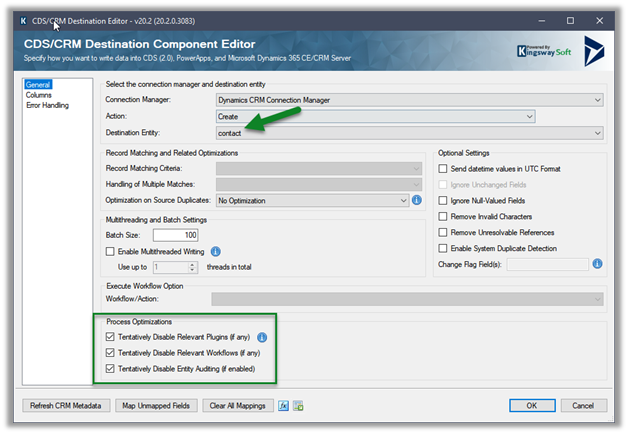

These options if enabled, will turn off or disable plugin, workflow, entity auditing during pre-execution temporarily, during the writing process, and will revert the changes to the original state after successful execution.

  • Tentatively Disable Relevant Plugins (if any)
  • Tentatively Disable Relevant Workflows (if any)
  • Tentatively Disable Relevant Auditing (if any)

Let us take a simple example to see it in action.

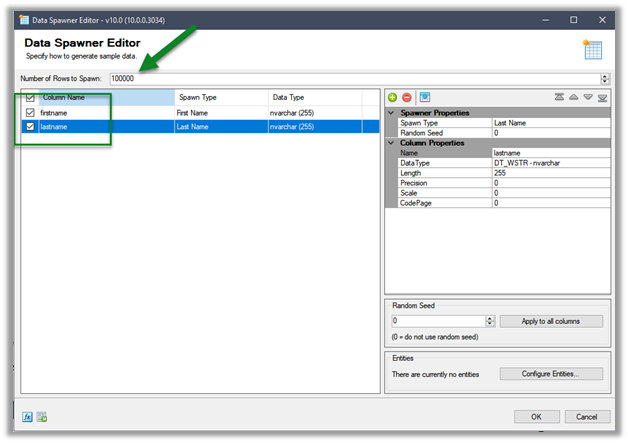

Here we have a simple data flow that creates contact records inside CDS using Data Spawner.

https://nishantrana.me/2020/05/26/using-data-spawner-component-ssis-to-generate-sample-data-in-dynamics-365/

Let us run the package and see the status of the plugin, workflow, and audit with regards to the contact entity.

As expected, we do not see any Audit records created for contact records creation.

We see an event where Audit is disabled and then enabled later for the contact entity, during the duration of package running and after its successful completion.

We can also see our workflow in status – Draft

In the case of Plugin, we didn’t see the step being disabled and it was still being triggered

As per the documentation –

Get the toolkit here

https://www.kingswaysoft.com/products/ssis-integration-toolkit-for-microsoft-dynamics-365

Hope it helps..

Changes in CDS / CRM Destination Component – SSIS Integration Toolkit for Dynamics 365


With version 20.2 November 2020 release, there have few updates added to the KingwaySoft’s CDS/CRM Destination Component, few are changes in the label and others are metadata changes, that one should be aware of before updating.

Check Post on SSIS and Dynamics 365

https://nishantrana.me/2020/10/16/ssis-kingswaysoft-and-dynamics-365/

  • Label changes.

Version 20.1 –

Version 20.2 –

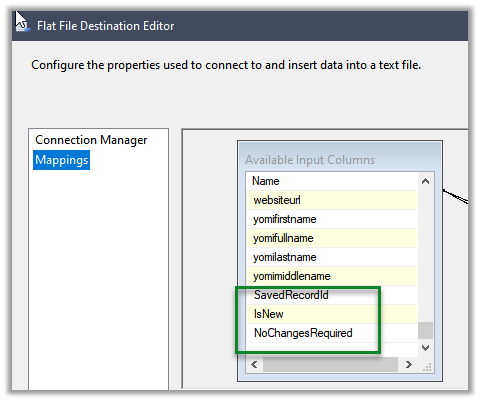

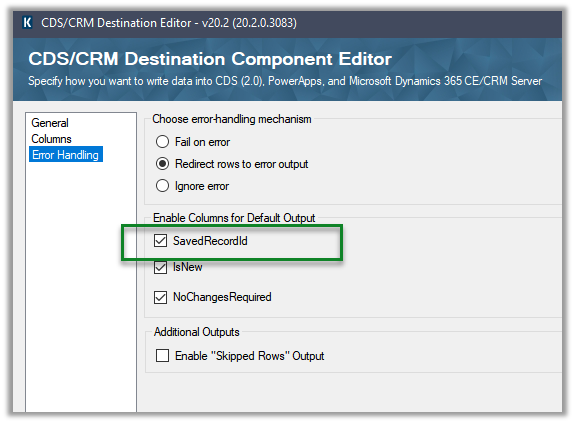

  • CrmRecordId renamed to SavedRecordId

Version 20.1 –

Version 20.2 –

  • CrmErrorMessage renamed to ErrorMessage

Version 20.1 –

Version 20.2 –

Thus, any package saved with the new version will not work with the older version, and it is recommended to take full back up of the package before updating to the new version.

Hope it helps..
