Error – We don’t support the option ‘HierarchicalNavigation’. Parameter name: HierarchicalNavigation when trying to load table in Power BI Desktop using Azure Data Lake Storage Gen 2 CDM Folder view (beta)

While trying to connect to a table within Azure Data Lake Storage Gen2 through CDS Folder View

we got the below error

Users have reported this issue with the August 2020 Update of Power BI Desktop.

As suggested in the forums, downgrading to June 2020 Update fixed the issue for us.

Check out Export CDS data to Azure Data Lake Storage Gen2

Posts on Azure Data Lake

Hope it helps..

Use Monitor to troubleshoot forms in the model-driven app (preview)– Dynamics 365

The new monitor feature added for the Model-driven apps can be used for troubleshooting issues with form related events.

We have 2 ways to access the monitor option.

Select the Model-driven app inside Power Apps and select Monitor in the command bar.

The other option is to add the parameter &monitor=true to the end of the URL

And select the monitor option

This will open the monitoring session in a new tab.

Click on the Play model-driven app.

This opens the app connected to the monitor session.

We can see any action performed tracked.

We can filter Category column to check specific events related to form.

Select the row to get the details populated on the right side.

Get all the details below

https://docs.microsoft.com/en-us/powerapps/maker/model-driven-apps/monitor-form-checker

Hope it helps..

Column Comparison using FetchXML Builder and SQL 4 CDS

Check it out, the column comparison feature is now added in our favorite XrmToolBox plugins (make sure to update to the latest version)

FetchXML Builder

https://jonasr.app/2020/07/fxb-july-2020/#more-4374

SQL 4 CDS

https://markcarrington.dev/2020/07/15/column-comparisons-in-fetchxml/

Thanks, @Jonas, and @Mark for incorporating it.

Also, refer –

https://www.itaintboring.com/dynamics-crm/we-can-now-do-column-comparison-with-fetchweb-api/

https://prashantmayur.wordpress.com/2020/07/20/use-column-comparison-in-d365-ce-power-apps-cds-queries/

https://debajmecrm.com/2020/07/16/compare-two-columns-in-queryexpression-in-dynamics-365-cds-sdk/

https://nishantrana.me/2020/07/16/the-new-column-comparison-in-queries-in-dynamics-365-powerapps/

Hope it helps..

New Admin Trial (subscription-based) experience – Dynamics 365

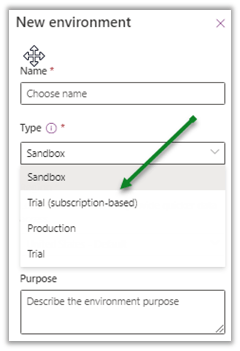

Recently a new Trial (subscription-based) environment option added to the tenants in the Power Platform Admin Center

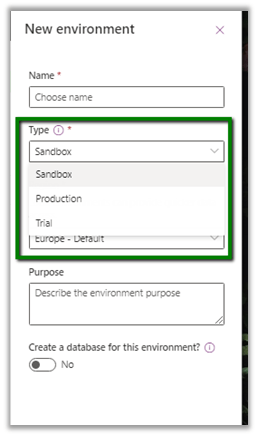

Earlier we were limited to below options –

These new trial types are created and controlled by tenant administrators, as a result of signing up for a trial subscription and can be added to the existing tenant.

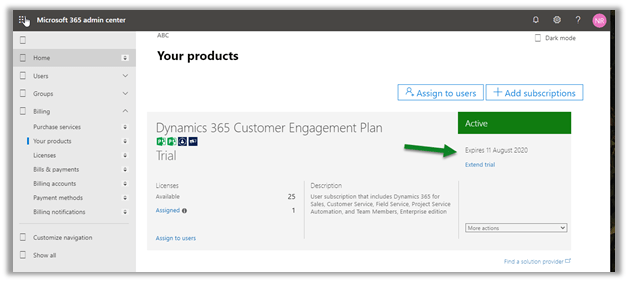

This new environment follows the trial subscription lifecycle (which is typically 30 days) and can be extended from the admin center.

https://admin.microsoft.com/Adminportal/Home#/subscriptions

A total of 3 trial environments can be created.
Trying to create 4^th will give us the below error

Get more details here

https://docs.microsoft.com/en-us/power-platform/admin/trial-environments

Hope it helps..

The new Column comparison in queries in Dynamics 365 / PowerApps

Column Comparison is one of the best features that has been recently added to the product.

Column comparison allows us to compare values of 2 different columns in our query be it Fetch XML, Web API, or through SDK API.

Sharing some of the basic examples that we tried using our favorite FetchXML Builder

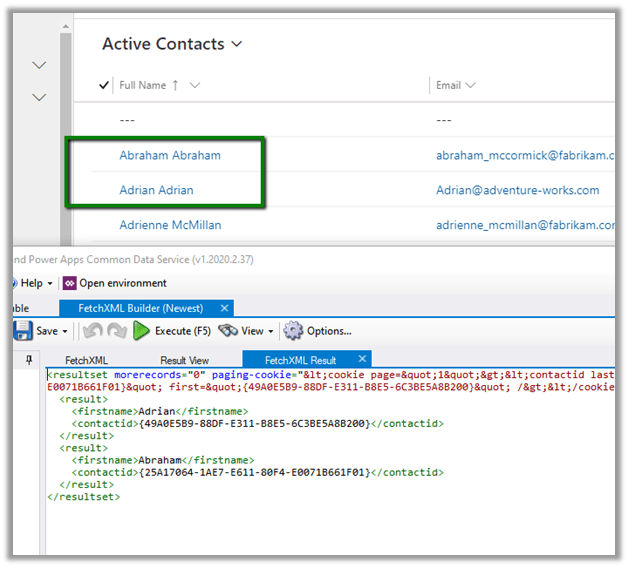

If we run the following query “Find all contact which has the first name equal to the last name”

The result –

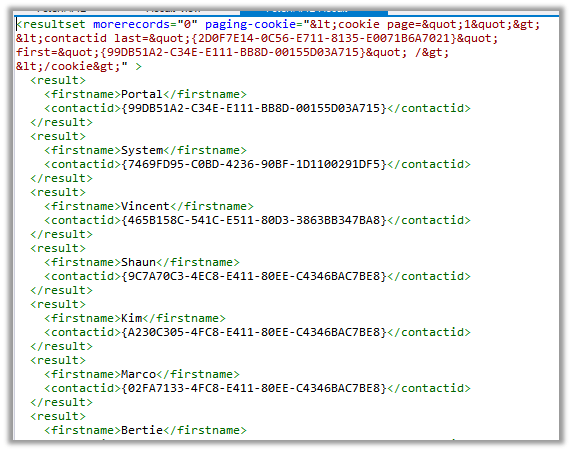

Find all contact where the first name is not equal to last name

The result –

The operators supported are –

Equal	LessEqual	GreaterEqual
Not Equal	LessThan	GreaterThan

Only 2 columns can be compared.
Only compatible attribute types can be compared.

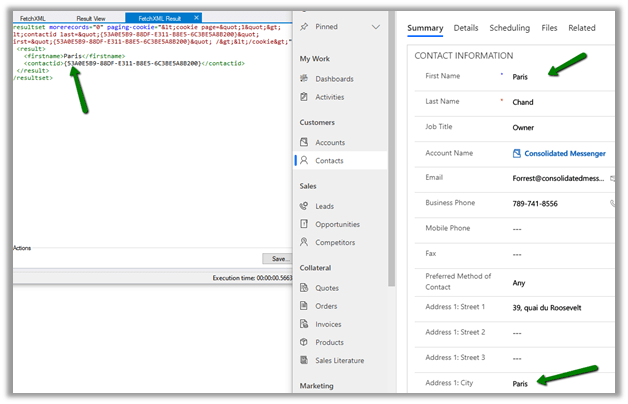

E.g. “Find all contact where the first name is equal to address 1 city”

The result

It works as both are string attributes.

If we try comparing text field with options set, we will get below error message

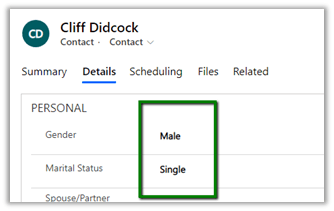

Two option set can be compared as they represent the same type integer

Both having value 1

Comparing date fields

We are getting the result

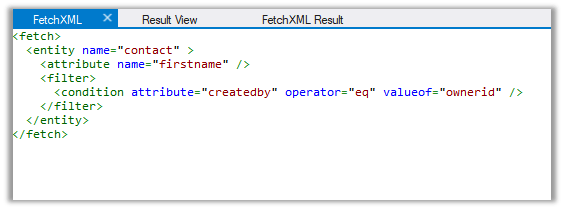

For the lookups, comparing created by and owner id

works as expected.

For the below record we have the First name and job title as null

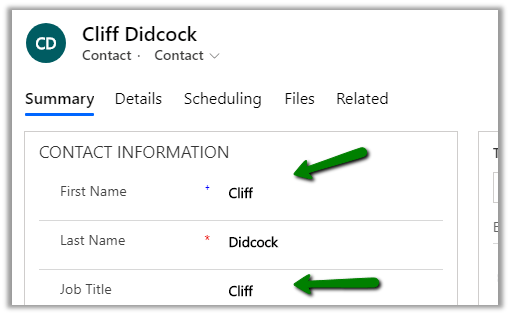

And here for below record, we have the same value for First Name and Job title.

On running the below query – find all contact where the first name is equal to the job title.

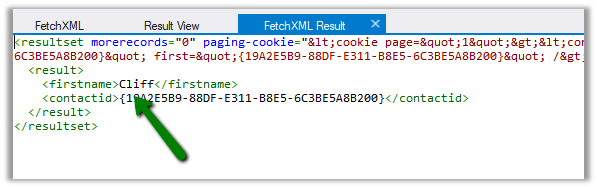

We get only one result. It ignored the blank (null) record.

Get all the details here

https://docs.microsoft.com/en-us/powerapps/developer/common-data-service/column-comparison

Hope it helps..

How to – Use Append and Merge to combine data from multiple data source in Power Platform dataflows

Let us continue with our previous post where we loaded the data from on-prem SQL DB to CDS using dataflows.

https://nishantrana.me/2020/07/07/load-data-from-sql-on-premise-to-cds-common-data-service-using-power-platform-dataflows-in-power-apps/

Now suppose we have another table (or any other data source) having the contact details, which we would like to append/merge along with our previous data source.

For simplicity, here we have created a copy of the existing table and added a new record with different values.

Edit the existing data flow created earlier.

Click on Get data and select the SQL Server database.

*The other data sources that are available.

Specify the connection details to connect to the database.

Select the new table that we had created.

Next click on Append queries, select Append queries as new, to create a new query.

Specify the primary table and table to append.

The new Query by default named Append will have the data from both the tables combined i.e. appended, which can then be used to load data to the existing contact entity or load to a new entity.

Specify the mapping in the data flow that completes the configuration of the dataflow.

That was about Append queries, now let us take another simple example to see Merge queries in action.

Again let us create one more table that has additional detail (e.g. Mobile Number) for the contact records. Just for simplicity, we are creating a table else it could be any of the supported data sources.

Let us edit the dataflow created earlier, and select Get data to get the data from the SQL Server database.

Here we have selected the new table Contact Details.

This time select Merge queries.

Specify the left table and right table for merge and the join type.

Select the join keys column.

Here we have opted for Inner Join.

The result includes the 1 matching row.

Expand the MyContactDetails column to populate the MobileNumber data.

Now with the data transformed, click on Next and define the mapping using the new merged query.

After a successful refresh, we can see the mobile phone field updated.

Let us update the value again for the mobile number field and run the refresh.

We can see the value updated for the CDS contact entity.

If the tables are already related using foreign key relationship for e.g. Contact and Contact Details, the Get data will load the related table, without any need of merge queries.
