Kanban View for Opportunity in Dynamics 365 Sales – 2020 Release Wave 1 Plan

With the 2020 Release Wave 1 Plan, now Kanban View can be added to Opportunity.

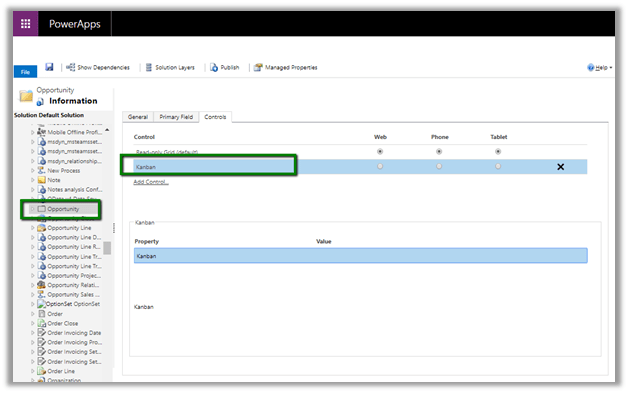

To configure it, open the Opportunity entity for Customization, go to Controls tab and Add Kanban control to it and publish the changes.

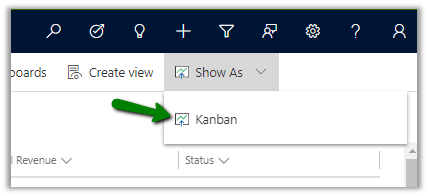

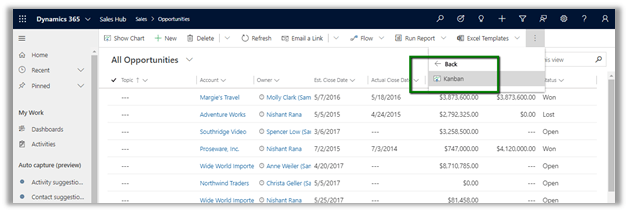

This adds the Kanban view to the Opportunity’s view.

There are 2 different Kanban views available

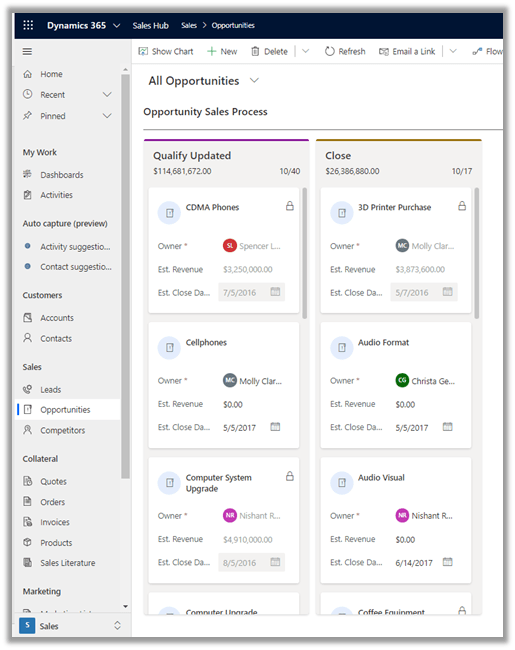

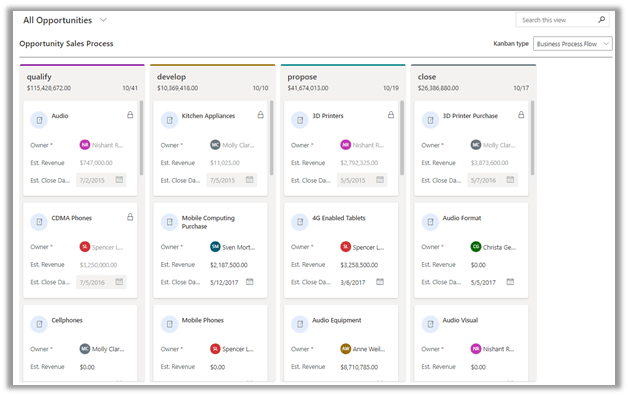

• Based on the BPF Sales stage (stages of the Opportunity sales process BPF)

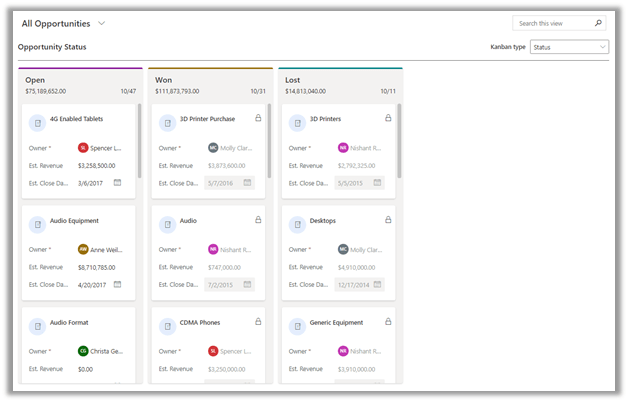

• Based on Status (Open, Won, Lost)


Let us look at different actions that we can perform within the Kanban view.

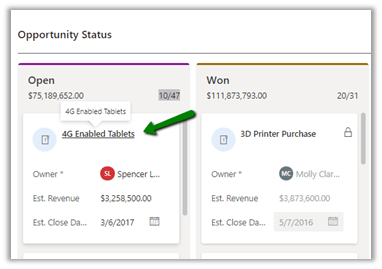

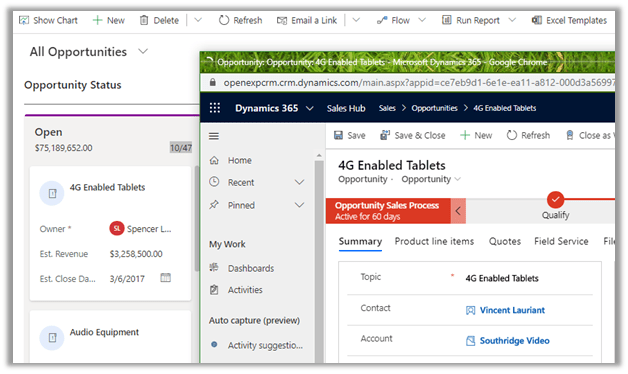

• Clicking on Title opens the record in new window

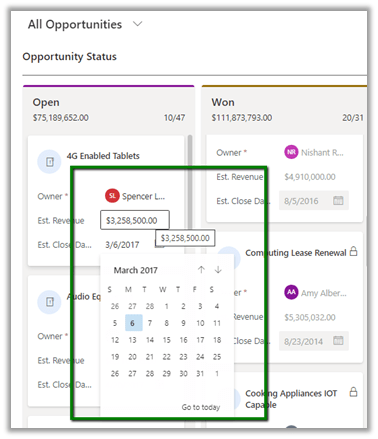

• Fields are editable

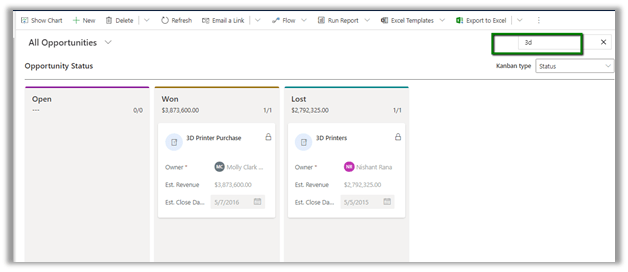

• Use Search to filter the result in the view

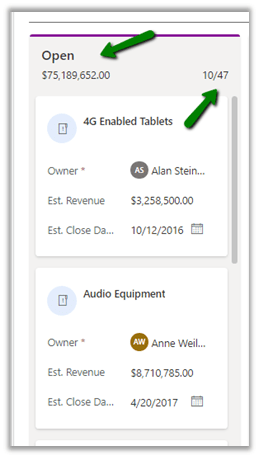

• Each lane shows the total of estimated revenue and total records in the lane

• Supports drag and drop

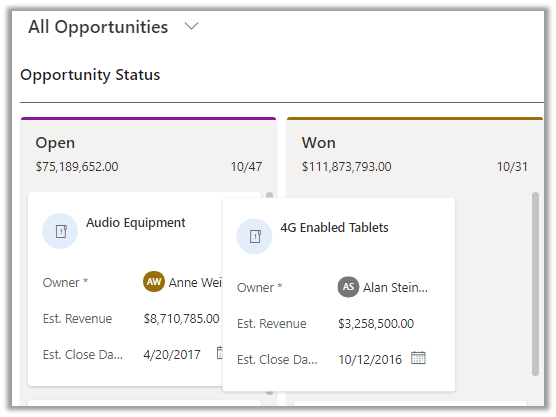

Here we are dragging the 4G Enabled Tablets record to Won Status lane.

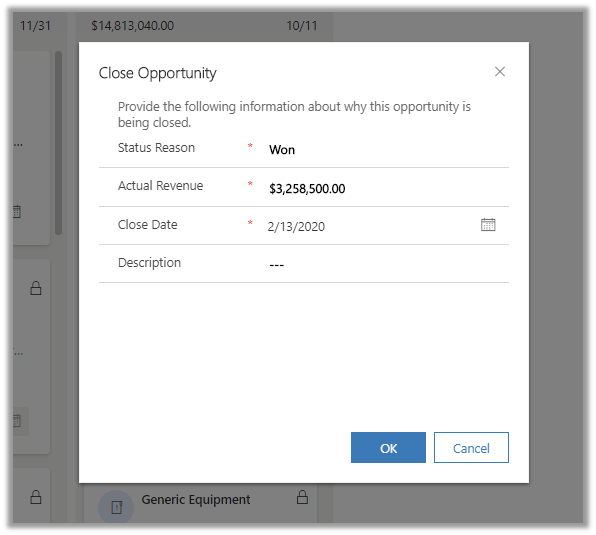

It opens the close opportunity dialog box.

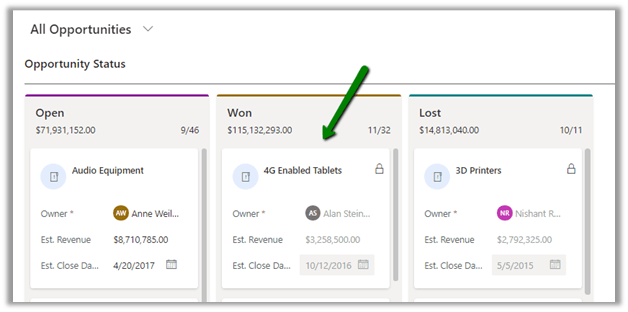

We can update the values and add a description if needed. Clicking on OK moves the record to the Won status lane.

Similarly dragging the record from Lost and Won to Open Lane, reopens the record.

In the case of the Business Process Flow view, moving the card to another stage lane will open the record itself.

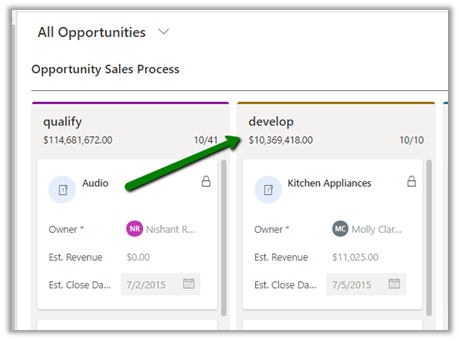

Here moving record titled Audio from qualify to develop lane

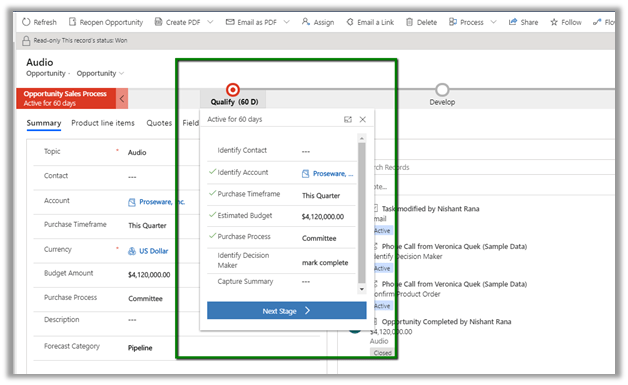

Opens the BPF in the record itself.

Currently, the Kanban view is only available for Opportunity Sales Process flow.

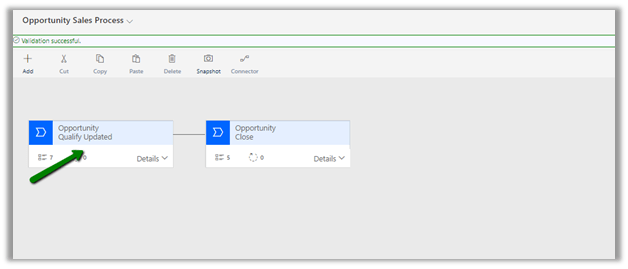

Updating the Display Name of the stage, adding/removing a stage all is reflected back in the Kanban View.

The Kanban View for the updated process reflects the changes made

With coming releases, expecting this feature added to other business process flow.
