Calling On Demand Workflow through a Button in Ribbon (launchOnDemandWorkflow) in CRM 2011

I had to call an on demand workflow through a custom button click inside the ribbon. I thought of using launchOnDemandWorkflow function.

http://inogic.blogspot.com/2009/06/call-workflow-from-isv-button.html

But couldn’t really find a way of calling that function.

So thought of calling it through its url, which would be something like this

http://servername/orgname/_grid/cmds/dlg_runworkflow.aspx?


iObjType=10004

&iTotal=1

&sIds=%7b4BEBDCAF-8F66-E011-A475-00155D045711%7d%3b

&wfId=%7bF0ED25C7-5129-4297-8515-69DFFA0739FF%7d


function CallOnDemandWorkflow() {


var recordID = crmForm.ObjectId;


var url = http://server/org/_grid/cmds/dlg_runworkflow.aspx?iObjType=10004&iTotal=1&sIds={“ + recordID + “}&wfId={F0ED25C7-5129-4297-8515-69DFFA0739FF}”;

window.open(url);

}

However I keep getting some JavaScript Error.

Finally found out the correct way of doing so.

function CallOnDemandWF() {

var a = new Array(crmFormSubmit.crmFormSubmitId.value);

var sIds = crmFormSubmit.crmFormSubmitId.value+“;”;

var sEntityTypeCode = “10004”; //Replace this with your entity type code

var sWorkflowId = “{F0ED25C7-5129-4297-8515-69DFFA0739FF}”; //Replace this with your actual workflow ID

var iWindowPosX = 500; //Modal dialog position X

var iWindowPosY = 200; //Modal dialog position Y

var oResult = openStdDlg(prependOrgName(“/_grid/cmds/dlg_runworkflow.aspx”)+“?iObjType=” + CrmEncodeDecode.CrmUrlEncode(sEntityTypeCode) + “&iTotal=” +

CrmEncodeDecode.CrmUrlEncode(a.length) + “&wfId=” + CrmEncodeDecode.CrmUrlEncode(sWorkflowId)+ “&sIds=” + CrmEncodeDecode.CrmUrlEncode(sIds) , a, iWindowPosX, iWindowPosY);

}

Check out the thread

http://axforum.info/forums/showthread.php?t=29333

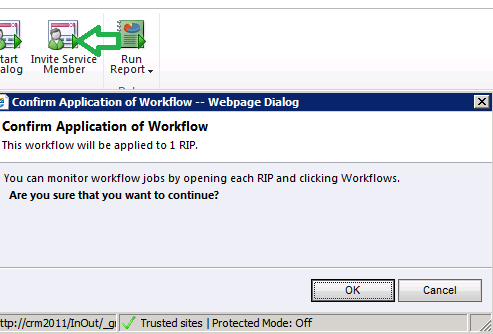

Final Output

The ribbondiffxml used is following

    <RibbonDiffXml>

            <CustomActions>

                <CustomAction

                Id=CA_MyFirstButton

                Location=Mscrm.Form.new_rip.MainTab.Workflow.Controls._children

                Sequence=31>

                    <CommandUIDefinition>

                        <Button

                        Id=B_MyFirstButton

                        Command=Cmd_JavaScript

                        LabelText=Invite Service Member

                        ToolTipTitle=Invite User

                        ToolTipDescription=Use this workflow to invite Service Member to the portal

                        TemplateAlias=o1

                        Image16by16=/_imgs/ribbon/startdialog_16.png

                        Image32by32=/_imgs/ribbon/startdialog_32.png></Button>

                    </CommandUIDefinition>

                </CustomAction>

            </CustomActions>

            <Templates>

                <RibbonTemplates

                Id=Mscrm.Templates/>

            </Templates>

            <CommandDefinitions>

                <CommandDefinition
Id=Cmd_JavaScript>

                    <EnableRules>

                        <EnableRule
Id=Mscrm.Enabled></EnableRule>

                    </EnableRules>

                    <DisplayRules></DisplayRules>

                    <Actions>

                        <JavaScriptFunction

                            Library=$webresource:new_InOut

                            FunctionName=CallOnDemandWF

                    >

                        </JavaScriptFunction>

                    </Actions>

                </CommandDefinition>

            </CommandDefinitions>

            <RuleDefinitions>

                <TabDisplayRules/>

                <DisplayRules/>

                <EnableRules/>

            </RuleDefinitions>

            <LocLabels/>

        </RibbonDiffXml>

Bye.


Author: Nishant Rana

I love working in and sharing everything about Microsoft.NET technology !

7 thoughts on “Calling On Demand Workflow through a Button in Ribbon (launchOnDemandWorkflow) in CRM 2011”

  1. Pingback: Anonymous
  2. (“/_grid/cmds/dlg_runworkflow.aspx”)
    It is the form that asks the confirmation of the workflow. This is the location on the server of the form aspx file that is the dialog.

    Like

  3. The reason it didn’t work with the url is because there are “{” and “}” around your guid which must be removed.
