Create a custom API of type function in Dynamics 365 / Microsoft Dataverse


Continuing our previous posts,

Create Custom API Message
https://nishantrana.me/2021/01/13/use-custom-api-to-create-custom-messages-in-dynamics-365/

Allowed Custom Processing Step Type Property –

https://nishantrana.me/2021/01/20/allowed-custom-processing-step-type-allowedcustomprocessingsteptype-property-of-custom-api-in-dynamics-365-microsoft-dataverse/

Here we will create a custom API of type function by setting Is Function property as true.

  • The function requires HTTP GET method.
  • The function must include at least one Custom API Response Property defined.
  • The function cannot use Entity or Entity Collection Request Parameter, i.e. Binding Type can only be Global in case of Function.

Let us define a Custom API Response Property and associate it with the custom function defined.

Here we have defined a custom API response property of type Boolean.

The other data type supported are

Below is the plug-in that we will associate with the Custom API message, here we are setting the value of the response parameter.

Associated the plugin to the custom API message

Let us trigger our function using the Postman.

Invoking Custom APIs

https://docs.microsoft.com/en-us/powerapps/developer/data-platform/custom-api#invoking-custom-apis

Plugin trace log –

More information on Custom API

Hope it helps..

Custom API Request Parameter entity in Dynamics 365 / Microsoft Dataverse


Continuing our previous posts on Custom API

Here we will look at the CustomAPIRequestParameter entity.

  • This entity can be used to define input parameters to the Custom API.
  • It is not a mandatory entity for Custom API i.e. we can define a custom API without any input/request or output/response parameter.
  • In the case of multiple parameters, ordering is not important as they are identified using the name.
  • One parameter can be associated with only one Custom API.
  • We can have multiple parameters with the same Unique Name as long as they are associated with different Custom API.

Say e.g. below is our Custom API

And this is our Custom API Request Parameter associated with the above API of type String

The different data type for the request parameter

Below is our plugin registered for the custom message.

We are checking for the input parameter and writing it in the trace log.

Let us call our custom API

And let us check the plugin trace logs.

We can see the message being called successfully.

Get more details –

Create and use Custom APIs

Hope it helps..

Allowed Custom Processing Step Type (AllowedCustomProcessingStepType) property of Custom API in Dynamics 365 / Microsoft Dataverse


Continuing our previous posts, let us check the AllowedCustomProcessingStepType attribute in this blog post

https://nishantrana.me/2021/01/13/use-custom-api-to-create-custom-messages-in-dynamics-365/

https://nishantrana.me/2021/01/14/execute-privilege-name-executeprivilegename-property-of-custom-api-in-dynamics-365-microsoft-dataverse/

Allowed Custom Processing Step Type attribute of custom API allows us to control whether other plugins can be registered or not against the custom message

  • 0 – None – No custom processing steps are allowed.
  • 1 – Async Only– Only Async processing steps are allowed.
  • 2 – Both Async and Sync custom processing steps are allowed

Let us create a custom API with the value of “Allowed Custom Processing Step Type” as None.

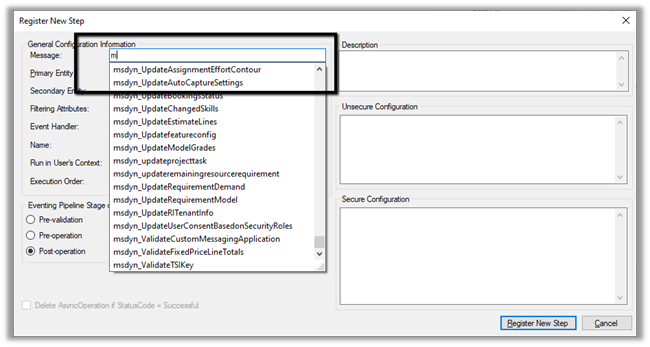

If we check inside the Plugin Registration tool, we will not find the above message that we registered i.e. my_sampleAPI there.

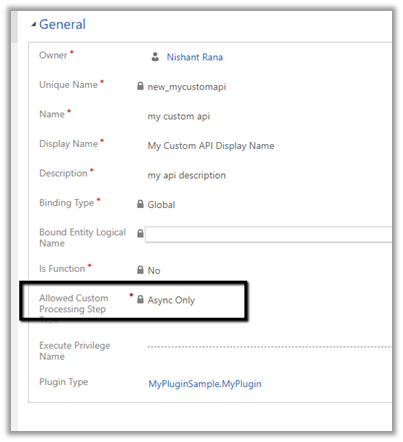

Let us create another custom API and specify “Allowed Custom Processing Step Type” as Async Only.

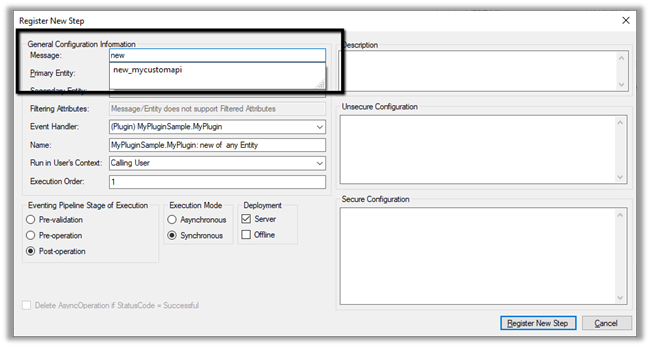

As expected we can find the message available there.

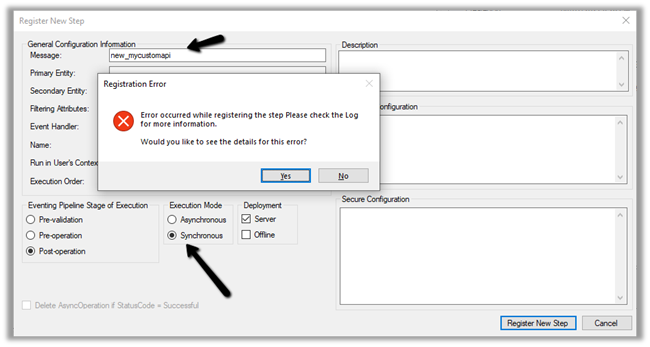

As it is Async Only, if we try to register the step with Synchronous mode, we will get the below error.

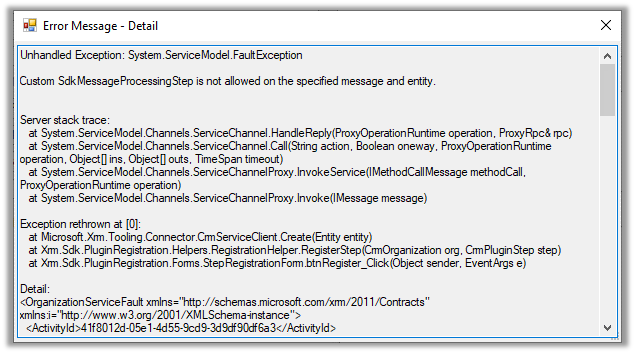

Custom SdkMessageProcessingStep is not allowed on the specified message and entity.

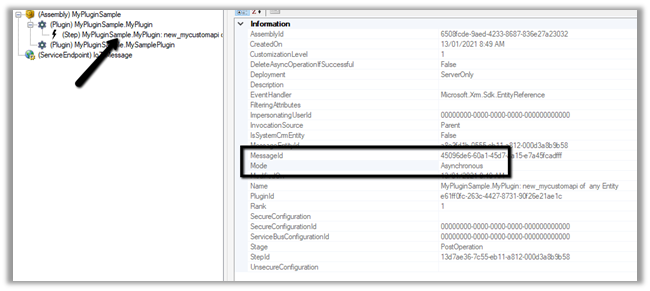

As expected it allows us to register the step in asynchronous mode.

Get more details –

Create and use Custom APIs

Hope it helps..

Execute Privilege Name (ExecutePrivilegeName) property of Custom API in Dynamics 365 / Microsoft Dataverse


In the previous post, we created a simple custom API  https://nishantrana.me/2021/01/13/use-custom-api-to-create-custom-messages-in-dynamics-365/

Let us look at its different properties starting with ExecutePrivilegeName

Execute Privilege Name attribute of custom API allows us to specify the name of the privilege that allows execution of the custom API.

Let us update the custom API and specify the privilege name.

For simplification, we have used prvCreateIncident here i.e. Create Case / Incident Privilege.

To get the Privilege name

https://%5Borgname%5D.api.crm.dynamics.com/api/data/v9.1/privileges?$select=name


To test, we updated the security of the Application User to Sales Manager role which doesn’t have the create incident privilege.

Calling the custom API this time as expected gave us the below error

{“error”:{“code”:”0x80040220″,”message”:”Principal user (Id=0f377e29-5545-eb11-a813-000d3a9bf733, type=8, roleCount=1, privilegeCount=727, accessMode=4), is missing prvCreateIncident privilege (Id=6cf9442b-e690-4cad-8b0a-e60464960b93) on OTC=112 for entity ‘incident’. context.Caller=0f377e29-5545-eb11-a813-000d3a9bf733″}}


If we specify an incorrect privilege name we would get the below error and will not be able to save the record.


Hope it helps..
