Notes on Dynamics 365 for Phones and Tablets app – Part 2 (Attachments)

Check the other articles of this series

Continuing the previous post

here we will look at the attachments.

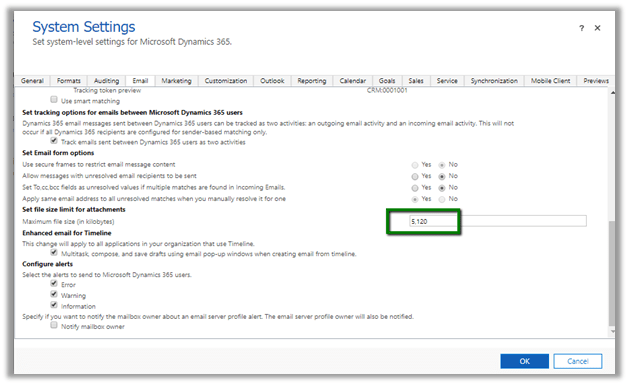

As we are aware, the file size limit for attachments in Notes is governed through System Settings à Email Tab.

The default value is 5120 KB

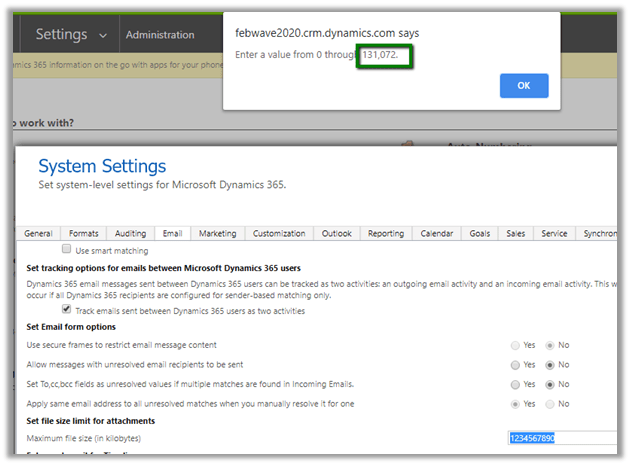

And maximum it can be set to 131,072 KB

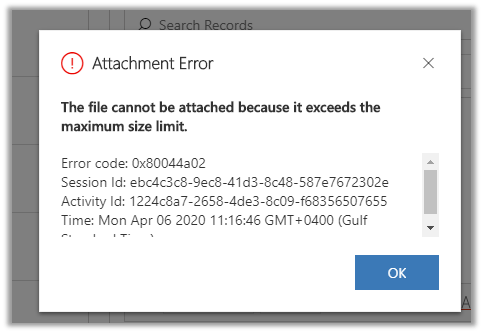

If the attachment size increases, we’d get the below error message from the web application

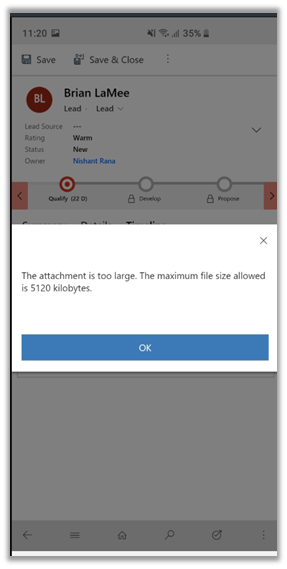

And from the phone app

Now as we know that with Dynamics 365 for Phone and Tablet app for Andriod and iOS, we are limited to attaching images i.e. capturing it through camera or selecting an existing image from the gallery.

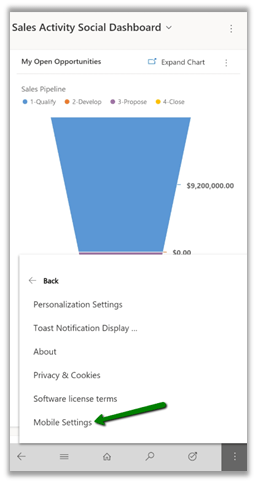

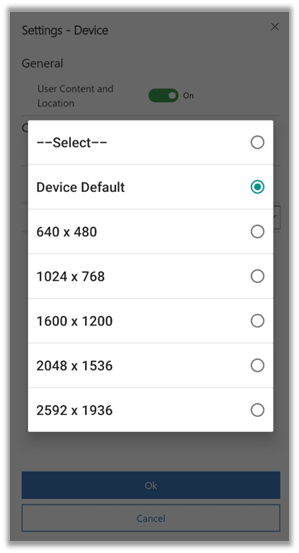

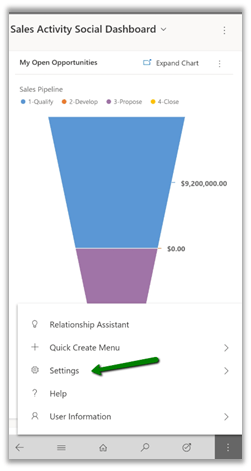

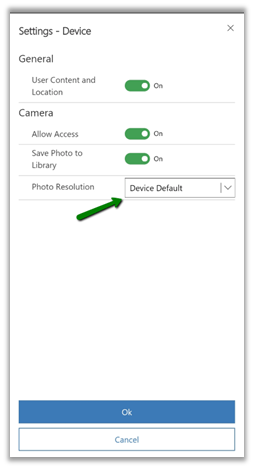

For phone and tablets, we can make use of a specific mobile setting, which allows us to set the resolution of the images

Below are our findings on the file size for different resolution for the below devices.

Phone App (KB) Tablet App (KB)
Resolution Samsung S10 Plus iPhone 11 Pro Max Huawei Mate 20 Pro
iPad 6th generation (iOS 13)
Device Default 25 1656 583 619
640 * 480 25 24 17 28
1024 * 768 52 69 36 56
1600 * 1200 92 152 77 154
2048 * 1536 137 196 163 260
2592 * 1936 208 366 303 389


Hope it helps..
