Sample code to call Action using Web API in CRM

Just sharing a sample code to call an Action through Web API.

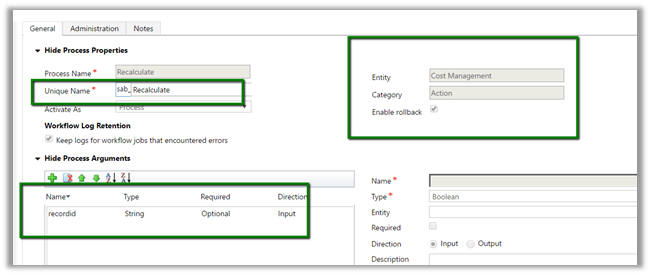

Suppose below is our Action with one input parameter.

JavaScript code :-


function CallAction() {

// get the id of the record and remove the curly bracket part
// id will be used in Web API url
var Id = Xrm.Page.data.entity.getId().replace('{', '').replace('}', '');

var serverURL = Xrm.Page.context.getClientUrl();

// pass the id as inpurt parameter
var data = {

"recordid": Id
};

var req = new XMLHttpRequest();

// specify name of the entity, record id and name of the action in the Wen API Url
req.open("POST", serverURL + "/api/data/v8.2/sab_costmanagements(" + Id + ")/Microsoft.Dynamics.CRM.sab_Recalculate", true);

req.setRequestHeader("Accept", "application/json");
req.setRequestHeader("Content-Type", "application/json; charset=utf-8");
req.setRequestHeader("OData-MaxVersion", "4.0");
req.setRequestHeader("OData-Version", "4.0");
req.onreadystatechange = function () {
if (this.readyState == 4 /* complete */) {
req.onreadystatechange = null;
if (this.status == 200) {
var data = JSON.parse(this.response);
alert(data);
} else {
var error = JSON.parse(this.response).error;
alert(error.message);
}
}
};

// send the request with the data for the input parameter
req.send(window.JSON.stringify(data));
}

Basically we need to pass name of the Entity Set with id of the record followed by name of the action appended with Microsoft.Dynamics.CRM.

In case of global action, we just need the Microsoft.Dynamics.CRM.<<ActionName>>.

More details here

https://www.inogic.com/blog/2016/10/execute-the-global-action-using-web-api-in-dynamics-crm/

Hope it helps..

Author: Nishant Rana

I love working in and sharing everything about Microsoft.NET technology ! View all posts by Nishant Rana

3 thoughts on “Sample code to call Action using Web API in CRM”

My custom action targets the contact entity (not a global action) and does not have input parameters. I had to do the following:

var data = {
//”recordid”: id
“entity”: “contact”
};

LikeLike

The success response status doesn’t necessarily have to be 200. It can be 204 (Success with no content returned in response body) or 304 (Success with Not Modified) as well.

LikeLike
