Canvas App – Quick Reference – Nishant Rana's Weblog

Recently we were working on Canvas Apps so thought of listing down some of the key points for quick reference

Use Items property for defining values for Drop Down and Combo Box.

Items = [“Branch”,”Country”]

Use DefaultSelectedItems for Setting Default values for Combo Box.

DefaultSelectedItems = [“Branch”]

To disable multiple selections for Combo Box set SelectMutiple as false

SelectMultiple = false

Change Data Source of Gallery based on Combo Box selected value

Items = If(ComboBox1.Selected.Value = “Branch”, Branches, Countries)

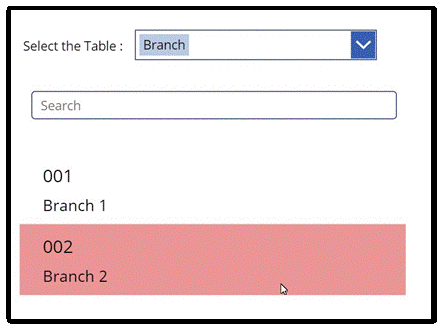

Filter Gallery’s data based on Text Box (string search)

Items = If(ComboBox1.Selected.Value = “Branch”,Filter(Branches,searchInput.Text in cre9d_value ||searchInput.Text in cre9d_name), Filter(Countries,searchInput.Text in cre9d_value ||searchInput.Text in cre9d_name))

Filter à

Search à

Unlock the Data Card field within the form to make changes to its properties

Use Navigate to move to a different Screen on OnSelect of Button

Navigate(Screen2, ScreenTransition.Fade)

The first item of the Gallery acts as a template

Use TemplateFill property to highlight the selected item in the Gallery.

TemplateFill = If(ThisItem.IsSelected,RGBA(233,150,150,10))

Use Sort to sort the Data Source for Items property

Items = Sort(Requests,’Created On’,Descending)

Fetch User’s Security Role and hide and show control based on it.

If(LookUp([@’Security Roles’], Name = “Maker”, Role) in Concat(LookUp([@Users], ‘Primary Email’ = User().Email).’Security Roles (systemuserroles_association)’, Role & “;”), true, false)

Submit, Reset, and New Form on saving a record on OnSelect of Button

SubmitForm(frmRequest);

ResetForm(frmRequest);

NewForm(frmRequest);

DataField is the most important property of the DataCard, which binds the control to the field in the Data Source.

The default value of the DataCard.

ThisItem is how we interact with the current record.

On SubmitForm – the form control reads the value of DataField property of all the cards to find the field to change and the value of each card from the Update property.

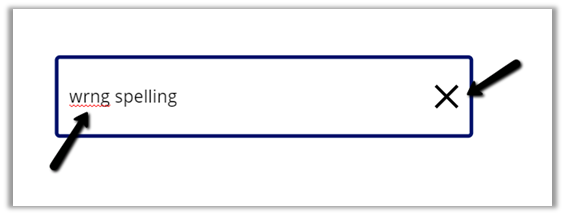

Clear Button and Enable Spell Check option for Text Input

checks for the spelling as well provide the option to clear the text box as shown below.

Contextual and Global Variable

Update / Set a Contextual Variable (referenced on the screen where they are created)

UpdateContext({varCount: 1, varActive: true, varName: User().FullName})

Set a global variable (available across the app)

Set(varCount, 1);Set(varActive, true);Set(varName, User().FullName)

With UpdateContext we can declare more than one variable at a time, which is not possible with global variable.
Use GUID function à

To generate a new GUID use GUID()

To convert a string to GUID(“0f8fad5b-d9cb-469f-a165-70867728950e”)

To set a variable null – Set(myNullVar, Blank())
GroupBy function – returns a table with records grouped together based on the values in one or more columns.

https://docs.microsoft.com/en-us/powerapps/maker/canvas-apps/functions/function-groupby

GroupBy( Table, ColumnName1 [, ColumnName2, … ], GroupColumnName )
