Getting started with Microsoft Bot Framework

To get started with Bot Framework, download the visual studio template for Bot Application from the following location

http://aka.ms/bf-bc-vstemplate

Extract it and put the content at the following location. (Visual Studio 2017 in my case)

C:\Users\<<ComputerName>>\Documents\Visual Studio 2017\Templates\ProjectTemplates\Visual C#

Open Visual Studio and select Bot Application template to create a new project

This is how the basic structure of the bot application looks like

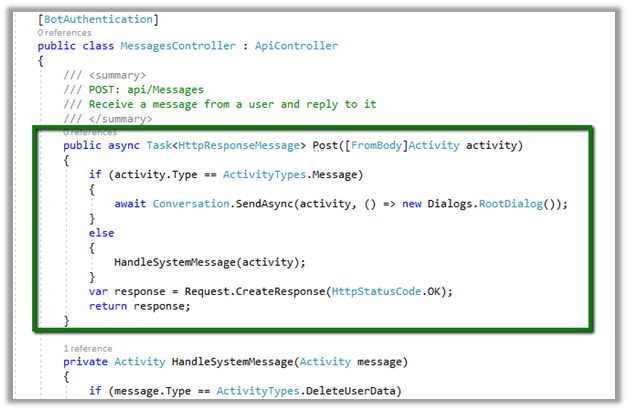

The most important part here being the MessageController class.

The class has the Post method which handles the message sent by the user/client termed as Activity. The Post method handles the Activity of type Message.

Below is the list of different type of Activities

DeleteUserData is when the client\user requests for Deletion of all the user data, ConversationUpdate is when a new member is added or removed from the conversation, Typing is when user is typing the message etc.

Now to test this sample application, we need to first download the Bot Emulator.

https://emulator.botframework.com/

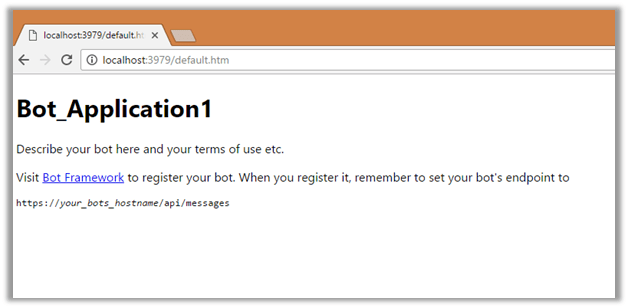

Now run the bot application.

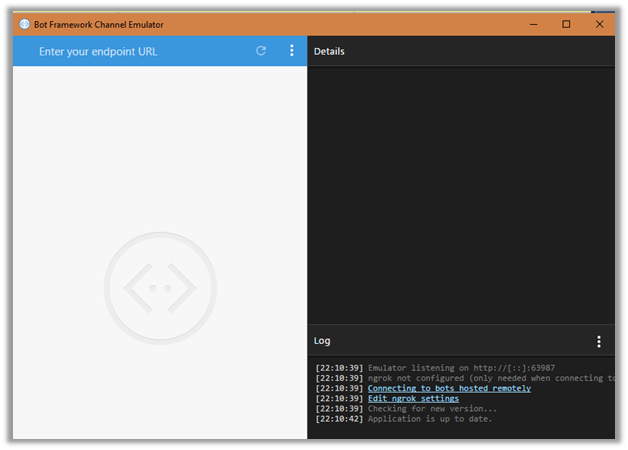

And next start the emulator

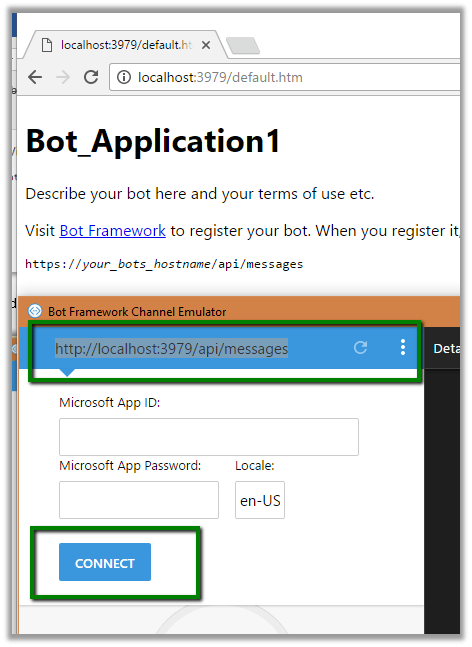

Enter the URL and click on Connect. We will leave App ID and Password as blank as we are testing it locally.

Just type in the message and we’d get the response back.

Details section shows the JSON message which could be useful for debugging and testing purpose.

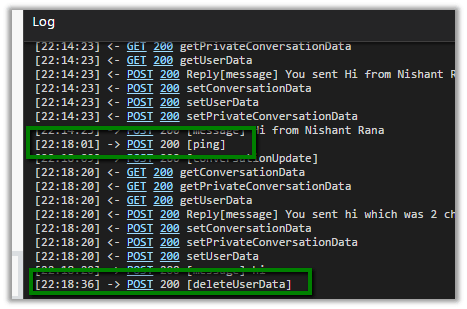

Apart from sending message we can simulate other Activity Type from within the emulator

The next post in this series

• Using Dialogs in Microsoft Bot Framework.
• Using FormFlow in Microsoft Bot Framework.
• Using LUIS AI in Microsoft Bot Framework Part 1
• Using LUIS AI in Microsoft Bot Framework.- Part 2
• Publishing Bot to Azure and adding it to Skype
• Publishing Bot to Facebook Messenger

Hope it helps..
